| 12" wide, 1-3/4" thick, 37" long (30.4 cm wide, 4.5 cm thick, 94.0 cm long) |
| Body Wood | African mahogany with maple top and mahogany through neck |
| Body Finish | Glossy Front, Matte Back |
| Body Colors | Black Knight, Majesty Purple, Royal Red, Imperial Blue |
| Bridge | Custom John Petrucci Music Man® Piezo floating tremolo |
| Scale Length | 25-1/2" (64.8 cm) |
| Neck Radius | 17" (43.2 cm) |

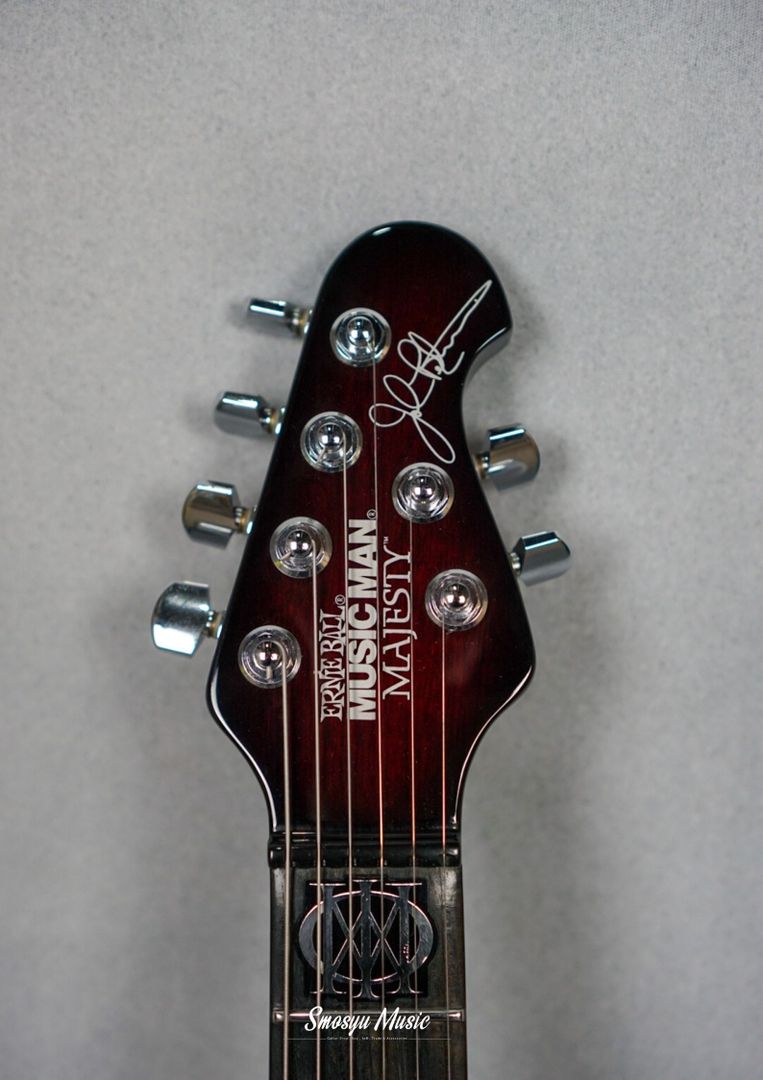

| Headstock Size | Angled & Only 5-7/8" (14.9 cm) long |
| Frets | 24 - Medium Jumbo profile, Stainless Steel |
| Neck Width | 1-11/16" (43.0 mm) at nut, 2-1/4" (57.2 mm) at last fret |
| Neck Wood | Honduran Mahogany |
| Fingerboard | Ebony |
| Fret Markers | Custom JP Majesty Inlays |
| Neck Finish | Matte |
| Neck Colors | Color matches body |

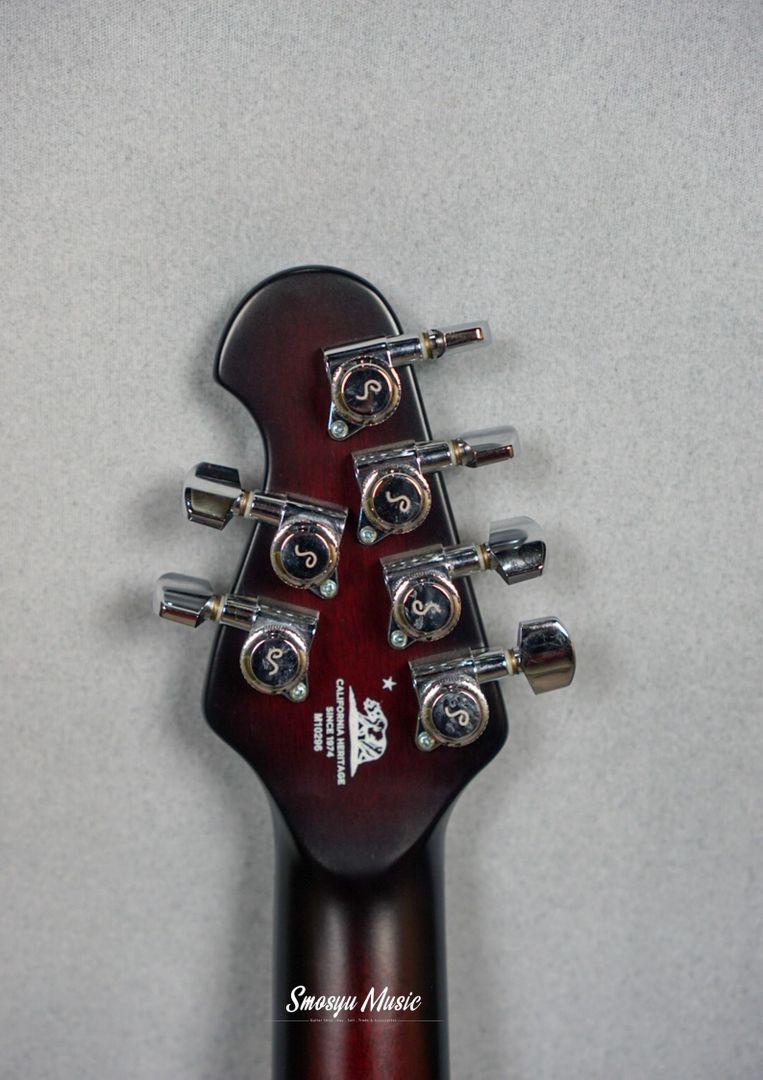

| Tuning Machines | Schaller M6-IND locking |
| Truss Rod | Adjustable - no component or string removal |
| Neck Attachment | Through neck design |
| Electronic Shielding | Graphite acrylic resin coated body cavity and aluminum control cover |
| Controls | Custom Music Man® active preamp; push/push volume for gain boost, 500kohm push/push passive tone for custom 2 pickup configurations - .022µF tone capacitor |
| Switching | 3-way toggle pickup selector, with custom center position configuration; 3-way toggle piezo/magnetic selector, momentary mono/stereo output knob (Piezo Volume) |
| Pickups | HH - DiMarzio Sonic Ecstasy; Piezo bridge pickup |
| Left Handed | No |
